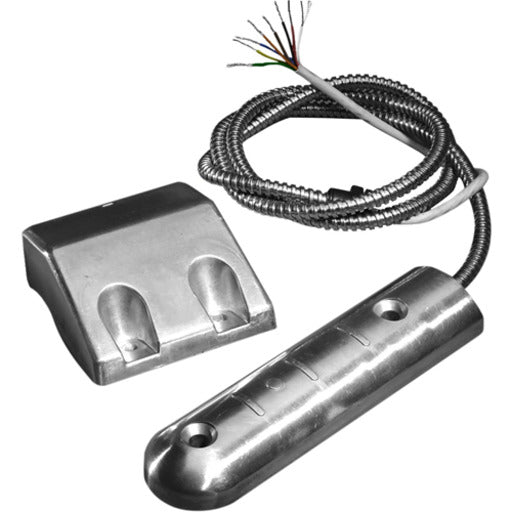

Knight Plastics YF10C, Universal Roller Shutter Contact (Grade 3)

The YF10C is universal (not handed) and has selectable resistors incorporated inside the housing which will suit most main control panels.

Specification:

  • Grade 3 Roller Shutter Contact
  • Double door contact
  • 1M Armoured Sleeving
  • Both Left and Right handed
  • Magnetic Interference Detection and Selectable Resistors
  • This is compatible with all mainstream UK control panels and includes both EOL and alarm by-pass resistor options
  • Colour: Silver
  • Environmental Class 3
  • Operation Gap : 35mm Approx
  • Dimensions: 150mm x 40mm x 15m
  • Terminals : 8-Wire
  • Tamper: Sealed unit
  • Includes Resistors compatible with – Honeywell, Ademco, Orisec, Scantronic, Menvier, Texecom, Pyronix, Castle, Aritech, Europlex, HKC, Gardtec / RISCO, Inner Range, Guardall Control Panels
  • Alarm Values 1k, 2k2, 4k7, 6k8, 8k2
  • EOL Values 1kr, 2k2, 4k7, 8k2
  • Just select the wires as per the instructions to determine the resistance to suit your panel
  • YOU HAVE TO USE ONE OF THE RESISTOR VALUES PROVIDED TO MEET GRADE 3 REQUIREMENTS. FOR NO RESISTOR OPTIONS, SEE OUR GRADE 2 PRODUCTS;
  • Note this contact already meets the requirements of BS50131-2-6: 2004
